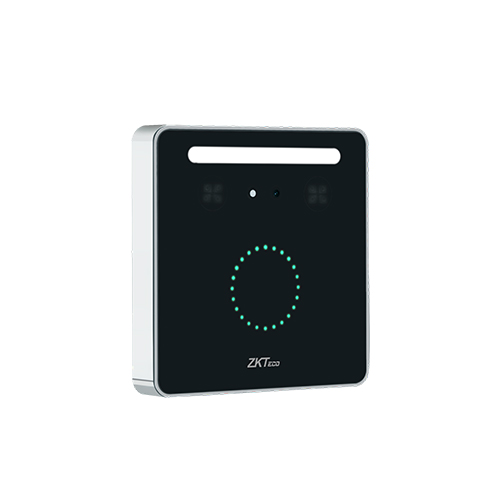

ZK Teco KF1200 Visible Light Facial Recognition & RFID Reader

Model
KF1200 Pro

Display

/

Camera

Dual Camera @ 2MP

Operation System

Linux OS

Hardware

CPU: 1.2GHz Dual Core
RAM: 256MB; ROM: 512MB

Authentication Method

Face / Card

Fingerprint Template Capacity

/

Face Template Capacity

Face Reader Mode: 3,000 Store in InBio Pro Plus (Default)
A&C Standalone Mode: 1,500 (1:N) (with DM10) (Optional)

Palm Template Capacity

/

Card Capacity

Face Reader Mode: 100,000 Store in InBio Pro Plus (Default)
A&C Standalone Mode: 30,000 (1:N) (with DM10) (Optional)

User Capacity

Face Reader Mode: 100,000 Store in InBio Pro Plus (Default)
A&C Standalone Mode: 30,000 (1:N) (with DM10) (Optional)

Transaction Capacity

Face Reader Mode: 500,000 Store in InBio Pro Plus (Default)
A&C Standalone Mode: 100,000 (1:N) (with DM10) (Optional)

Biometric Authentication Speed

less than 0.3 sec (Facial Recognition)

Touchless Biometric Recognition Distance

30cm to 50cm (Facial Recognition)

Touchless Biometric Operating Lighting Environment

≤ 2,000 lux @ Face

False Acceptance Rate (FAR) %

FAR ≤ 0.01%

False Rejection Rate (FRR) %

FRR ≤ 0.02%

Biometric Algorithm

ZKLiveface 3.5 / 4

Card Type

ID Card @ 125 kHz (Standard)
IC Card @ 13.56 MHz (Optional)

Communication

Face Reader Mode: ZKTeco RS-485*1
A&C Standalone Mode / Face Template Mode: TCP/IP * 1
Wi-Fi (IEEE802.11a/g/n) @ 2.4 GHz (Optional)

Mobile Communication

/

Standard Functions

Face Reader Mode (with InBio Pro Plus)
A&C Standalone Mode (with DM10)
Face Template Mode (Default)

Optional Functions

IC Card@13.56 MHz (Optional)
Wi-Fi (IEEE802.11a/g/n) @ 2.4 GHz (Optional)

Access Control Interface

A&C Standalone Mode (with DM10)

Power Supply

DC 12V 3A

Operating Temperature

-10°C to 50°C

Operating Humidity

10% to 90% RH (Non-condensing)

Dimensions
KF1200 Pro: 121mm * 80mm * 13.8mm (L * W * H)

Gross Weight

0.36Kg

Net Weight

0.27Kg

Supported Software

ZKBio CVSecurity

Installation
KF1200 Pro: Wall-mount(Compatible with Single Gang Box)

Housing Material

Aluminium Alloy

Ingress Protection Rating

/

Certifications

ISO14001, ISO9001, CE, FCC, RoHS

Factory ID
KF1200 Pro: AC01-VL07H-P17
