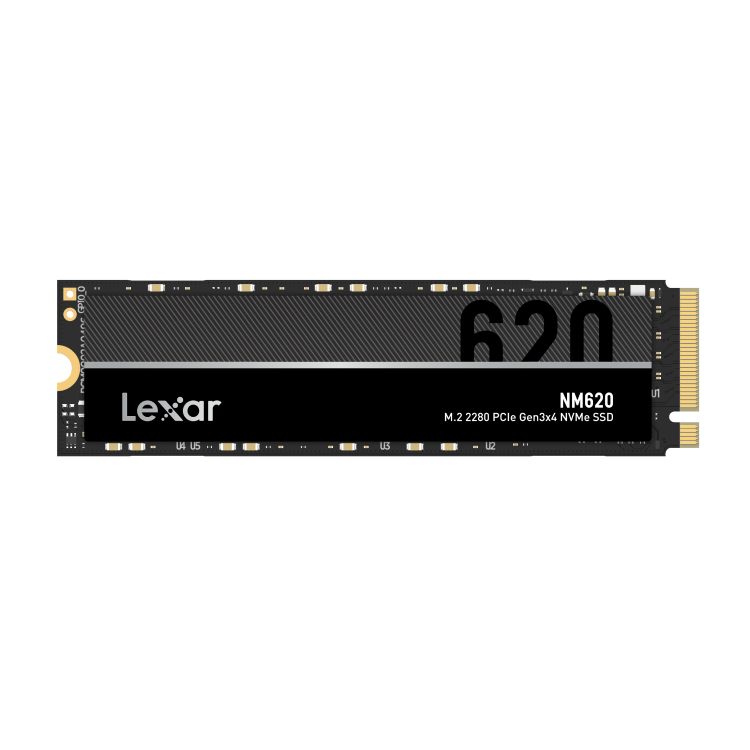

Lexar® NM620 M.2 2280 NVMe SSD

Specifications
Form Factor
M.2 2280
Interface
PCIe Gen3x4
Performance
512GB - sequential read up to 3500MB/s, write up to 2400MB/s
IOPS: up to 200/256K
1TB - sequential read up to 3500MB/s, write up to 3000MBs
IOPS: up to 300/256K
2TB - sequential read up to 3500MB/s, write up to 3000MBs
IOPS: up to 300/256K
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Dimension (L x W x H)
80 mm x 22 mm x 2.25 mm / 3.15” x 0.87” x 0.09”
Weight
9g
Warranty
5 year limited warranty
Shock Resistant
1500 G, duration 0.5ms, Half Sine Wave
Vibration Resistant
10~2000Hz, 1.5mm, 20 G, 1 Oct/min, 30min/axis(X,Y,Z)
TBW
2TB:1000, 1TB: 500TB, 512GB: 250TB, 256GB: 125TB
DWPD
1TB: 0.44, 512GB: 0.44, 256GB: 0.44
NAND flash
3D TLC
MTBF
1,500,000 Hours
1 Up to 3500MB/s read transfer, write transfer speeds lower. Speeds based on internal testing. Actual performance may vary.

2 Shock resistant (1500G, duration 0.5ms, Half Sine Wave) and vibration resistant (10~2000Hz, 1.5mm, 20G, 1 Oct/min, 30min/axis(X,Y,Z)). Based on internal testing. Actual performance may vary.

3 Comparison based on internal testing. Actual performance may vary.

Security safeguards, by their nature, are capable of circumvention. Lexar does not guarantee data will be 100% secure from unauthorized access, alteration, or destruction.

Lexar is not liable for any loss of data or images.

General Disclosure

Product appearance, performance, software, and packaging may vary based on shipping date and available inventory.

Usable Storage Disclosure

Actual usable storage may be less than stated due to system formatting and other functions. 1GB = 1 billion bytes.
