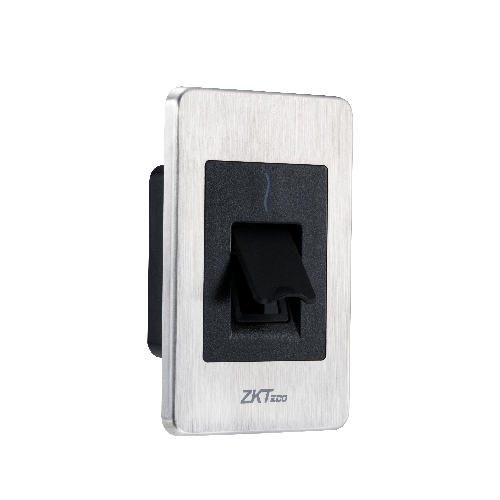

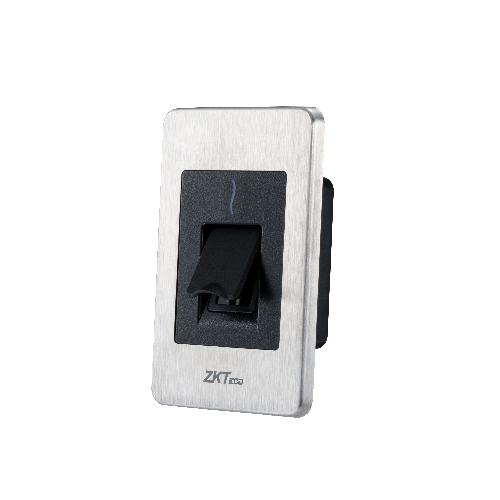

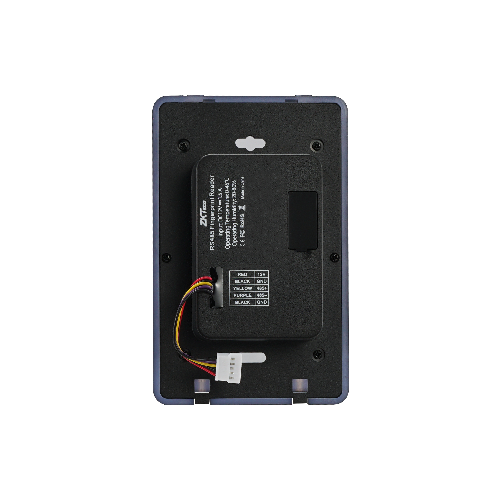

ZK Teco FR1500S+ ID Fingerprint reader with RS485 communication interface

Model

FR1500S

Hardware

Physical Keypad: NA
Fingerprint Sensor: Z-ID (Image Resolution 500DPI / Eective Collecting Area 15.24 * 20.32 mm/Image Size 300 * 400 pixels)
RFID Module: ID Standard (standard), IC Optional (optional)

Authentication Method

Fingerprint / Card

Card Type

ID Card@125 kHz (Standard)
IC Card@13.56 MHz (Optional)
Encrypted DESFire Card @ 13.56 MHz (Optional)
ID Card & IC Card & Encrypted DESFire Card @ 125 kHz &13.56 MHz (Model: FR1500, Optional)
HID Proxy @ 125 kHz (Optional)
HID iCLASS @ 13.56 MHz (Optional)

Biometric Verification Speed

< 0.3s @ Fingerprint

Touchless Biometric Recognition Distance

< 5 cm @ Card

False Acceptance Rate (FAR) %

FAR≤ 0.0001%

False Rejection Rate (FRR) %

FRR≤ 0.01%

Biometric Algorithm

ZKFingerprint V10.0 (Default) / V13.0

Communication

RS485: ZKTeco RS485 *1/OSDP (Ver 2.1.7)

Visual Indicator

LED
(Blue = Standby)
(Green = Verification Successful)
(Red = Verification failed)

Audio Indicator

Beeper

Operating Environment

Indoor / Outdoor / Semi-Enclosed Area

Power Supply

9VDC to 24VDC

Operating Temperature

-10°C to 45°C

Operating Humidity

10% to 90% RH (Non-condensing)

Dimension

121 mm*77.3 mm*38 mm (L*W*H)

Gross Weight

0.26 Kg

Net Weight

0.20 Kg

Installation

Wall Mount (compatible with single gang box)

Housing Material

SUS304 Stainless Steel and ABS Plastic

Ingress Protection Rating

IP65

Certifications

ISO14001, ISO9001, CE, FCC, RoHS
