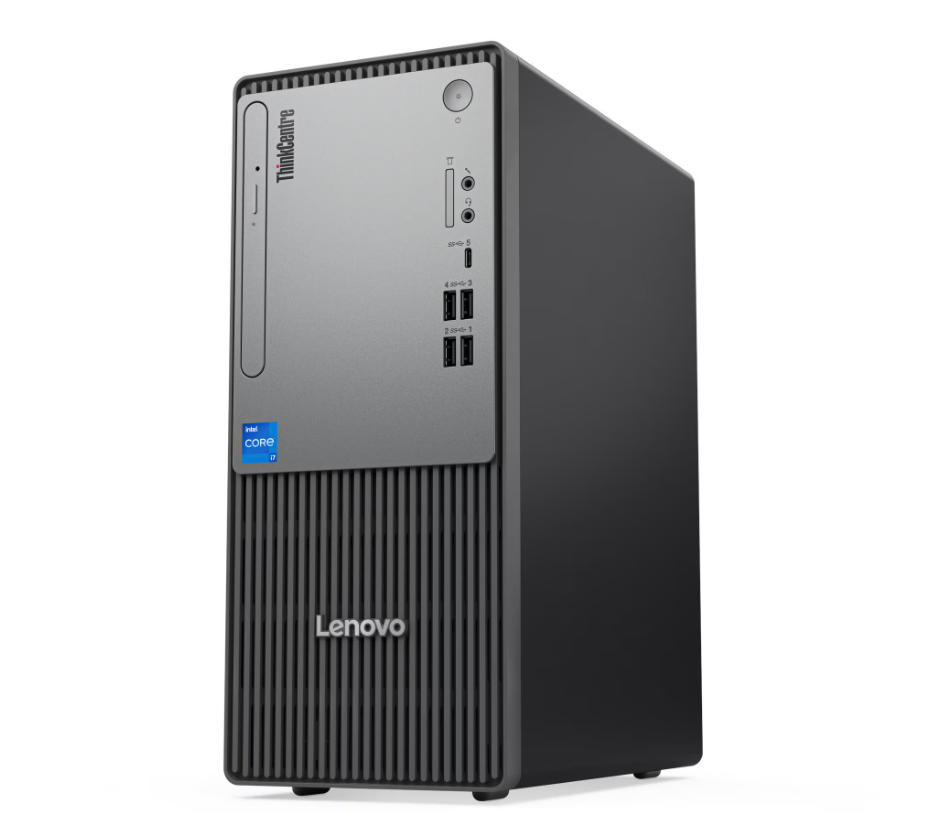

LENOVO ThinkCentre neo 50t Gen 5 Intel® Core i5-14400

Intel® Core i5-14400, 10C (6P + 4E) / 16T, P-core 2.5 / 4.7GHz, E-core 1.8 / 3.5GHz, 20MB

Graphics

Integrated Intel® UHD Graphics 730

Intel® B760 Chipset

1x 8GB UDIMM DDR5-4800

Two DDR5 UDIMM slots, dual-channel capable

Max Memory

Up to 64GB DDR5-5600

512GB SSD M.2 2280 PCIe® 4.0x4 NVMe®

Max Storage Support

Up to three drives, 1x 3.5"HDD + 1x 2.5"HDD + 1x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 1TB • 2.5" HDD bay is only for customer self upgrade

3-in-1 Card Reader

None

High Definition (HD) Audio, Realtek® ALC623-CG codec

2Wx1

180W 85%

USB Calliope Keyboard, Black, English (UK)

USB Calliope Mouse, Black

None

• One PCIe® 3.0 x16, full-height, length ≤ 233.6mm, height ≤ 117.5mm
• One PCIe® 3.0 x1, full-height, (length ≤ 185mm, height ≤ 100mm) or (length ≤ 118mm, height ≤ 110mm)
• Two M.2 slots (one for WLAN, one for SSD)

Black

None

Toolless Chassis Screw

Pen Not Supported

Tower (13.6L)

Dimensions (WxDxH)

145 x 294 x 340 mm (5.71x 11.57 x 13.39 inches)

Weight

Around 5.6 kg (12.35 lbs)

Intel® Wi-Fi® 6 AX201, 802.11ax 2x2 + BT5.2

Non-WWAN

RTL8111K, 1x RJ-45

• 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with data transfer and 15W charging
• 4x USB-A (USB 5Gbps / USB 3.2 Gen 1)
• 1x headphone / microphone combo jack (3.5mm)
• 1x microphone (3.5mm)

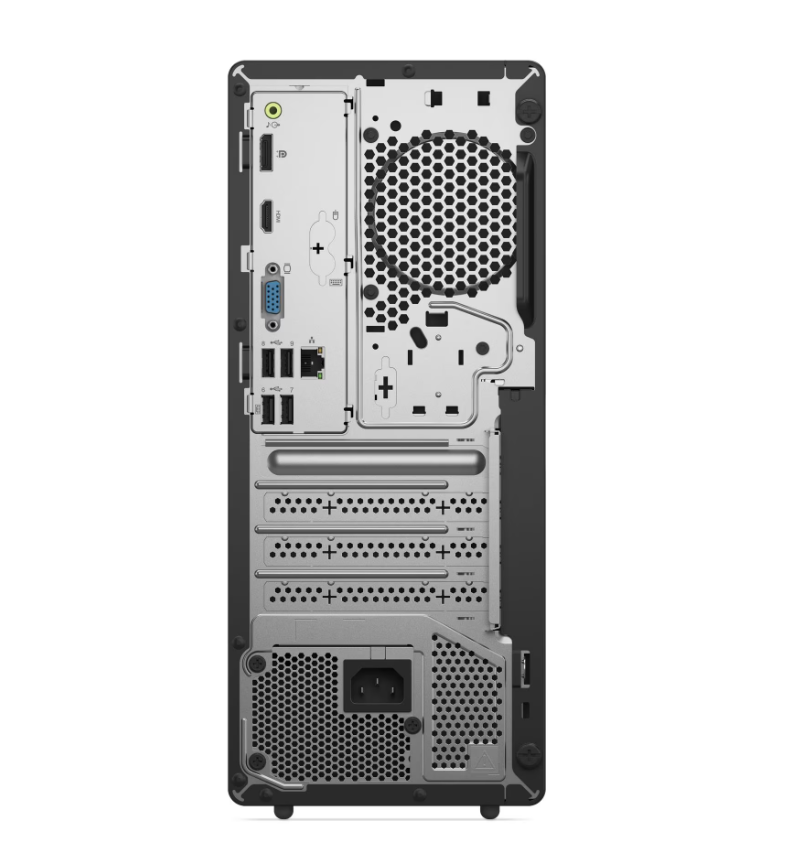

Rear Ports

• 4x USB-A (Hi-Speed USB / USB 2.0), one supports Smart Power On
• 1x HDMI® 2.1 TMDS
• 1x DisplayPort™ 1.4a (HBR2)
• 1x VGA
• 1x Ethernet (RJ-45)
• 1x line-out (3.5mm)

None

Discrete TPM 2.0, TCG certified

• Kensington® Security Slot™
• Padlock Loop

None

Chassis Intrusion Switch
